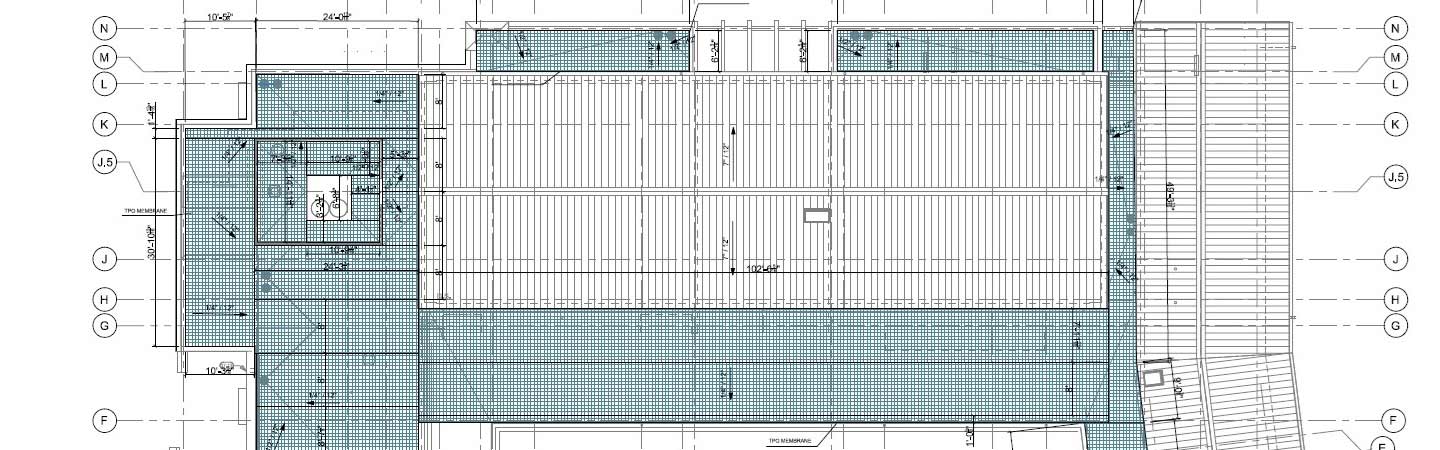

Roofing and associated flashings shop drawings

Roofing and associated flashings shop drawings

ROOF SHEATHING is a 7/16" OSB TPO MEMBRANE is a 60 mil Versiweld in white UL-1 is Carlisle WIP 300 HT INS-1 at the flat roof is a 4.5" Versico Secureshield Polyiso STANDING SEAM METAL PANELS: this is going to be a 24 ga double lock panel 16.5" wide, color TBD In the metal assembly we also have an INS-3 which is ComfortBoard 80 and then there's also a Ventilation Mat that is called CedAir Mat, and we have a UL-2 at the ridges, but I don't have a product secured for this yet. In the TPO assembly, that coverboard is a 1/2" Densdeck Primed The vapor retarder at the plate steel deck is going to be Carlisle VapAir Seal MD On sheet 13 where the quantities are listed, parapet has a typo (a instead of e).
